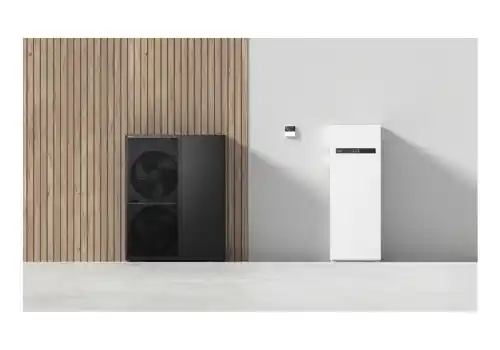

Panasonic Heating & Cooling Solution’s Aquarea M Series air-to-water heat pumps are now available to market. The latest series has set a benchmark for efficiency, sustainability, and impressive operation in the industry.
The M Series 9,12 & 16kW Single or 3 phase has been designed with a modular concept that allows for a variety of application choices, catering to different needs and property types. It provides four options in the line up, Standalone Remote Controller, Control Module, Hydro Box and AiO units, providing tailored solutions for every user. The system utilises the natural refrigerant R290, known for its low Global Warming Potential (GWP) of just 3, making it a more environmentally friendly choice. The hydraulic connection between outdoor and indoor units (Hydro Box & All In One) simplifies installation, eliminating the need for F-gas certification.
New solutions are offered with the M Series line up not previously seen with the L Series R290, using either the NEW Standalone Controller or Control Module optional product you can provide heating and DHW with no hydraulic additional indoor unit, these options are complimented by the Hydro Box or All in One to complete the solutions offered. This unit features Panasonic’s T-CAP technology, which maintains nominal capacity without a heater, even in extreme conditions, down to -20°C and can operate at temperatures as low as -28°C. T-CAP technology allows for maintained capacity whilst being a cost and space saving sustainable option, requiring less power. It offers quiet operation with a sound power level of just 53db(A) for a 12kW unit, and delivers high-temperature performance, providing a water outlet temperature of 75°C at -15°C and 55°C hot water at -25°C. Equipped with Panasonic’s scroll compressor, this unit ensures reliable and efficient performance.
The Aquarea M Series also has an AiO model that can be connected to the outdoor 9, 12, 16 kW units. The unit features a 185 L capacity with all functionalities, including a back-up heater and a new expansion vessel that extends the elevation difference up to 30 metres. It boasts a seamless design, a DHW 3.6 COP rating, an additional CN-CNT port for easy integration into a BMS project. Also included is a Wi-Fi adapter to connect to Aquarea Smart Cloud and Service Cloud to ease remote management and enable remote service management, providing a comprehensive and convenient heating solution for modern homes.
To complement this, Panasonic has also introduced new remote controllers for the M Series outdoor unit. The remote controller is essential if no other indoor component is selected, and it comes bundled with or without Wi-Fi adaptor option. Additionally, a dual controller system has been developed, allowing for independent control of two zones within a property, offering users more flexibility in managing their heating and cooling needs.
For those seeking advanced control functions, Panasonic has introduced an optional PCB for the Control Module, Hydro Box All-In-One options. This PCB allows for 0-10 V demand control, SG readiness, and other advanced functions, offering users greater customisation and control over their heating systems.
Not only do the heat pumps perform efficiently, but they also enhance the aesthetic of any home. Featuring a modern design, the outdoor units are available in Anthracite Grey, with the indoor units available in sleek Monochrome options.
To find out more, please visit: www.aircon.panasonic.eu
