05 February 2018
|

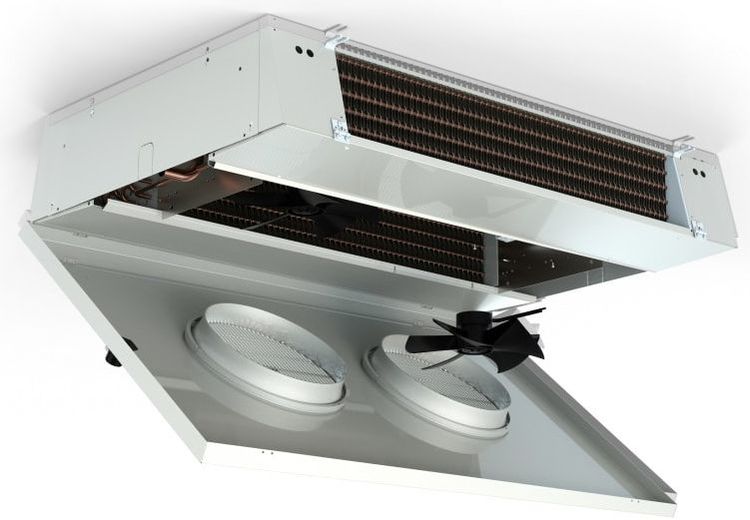

 | Kelvion's Goedhart, Küba and Searle brands have combined to produce a new air cooler for commercial refrigeration. The Kelvion KDC dual discharge air cooler replaces the Goedhart FC38D, Küba DP, and Searle DSR cooler ranges. |
Designed for use in commercial HVACR, cold rooms, and freezer rooms, Kelvion says its EC fans ensure energy efficiency, and its dual air discharge enables uniform distribution of temperature – since the air flow is guided along the ceiling and deep into the room. Two fixed fan speeds enable either high air capacity, or quiet operation with low draft.
The KDC is designed in its standard version for synthetic refrigerants or brine. Depending on model size, the maximum cooling duty is 1.4 to 23 kW with HFC (SC2*), or 2.8 to 37.7 kW with cooling by brine**.
The optional 45/90-bar version enables the use of CO2 and provides maximum cooling duty of 1.7 to 23 kW***, depending on model size.
* tL1= 0°C | t0= -8°C | DT1 = 8K | R404A [SC2]
** tL1= +16°C | tS1= +4°C | tS2= +8°C | Water [SC10]
*** tL1= 0°C | t0= -8°C | DT1= 8K | R744 | 45/60 bar
The KDC is designed in its standard version for synthetic refrigerants or brine. Depending on model size, the maximum cooling duty is 1.4 to 23 kW with HFC (SC2*), or 2.8 to 37.7 kW with cooling by brine**.
The optional 45/90-bar version enables the use of CO2 and provides maximum cooling duty of 1.7 to 23 kW***, depending on model size.
* tL1= 0°C | t0= -8°C | DT1 = 8K | R404A [SC2]
** tL1= +16°C | tS1= +4°C | tS2= +8°C | Water [SC10]
*** tL1= 0°C | t0= -8°C | DT1= 8K | R744 | 45/60 bar
